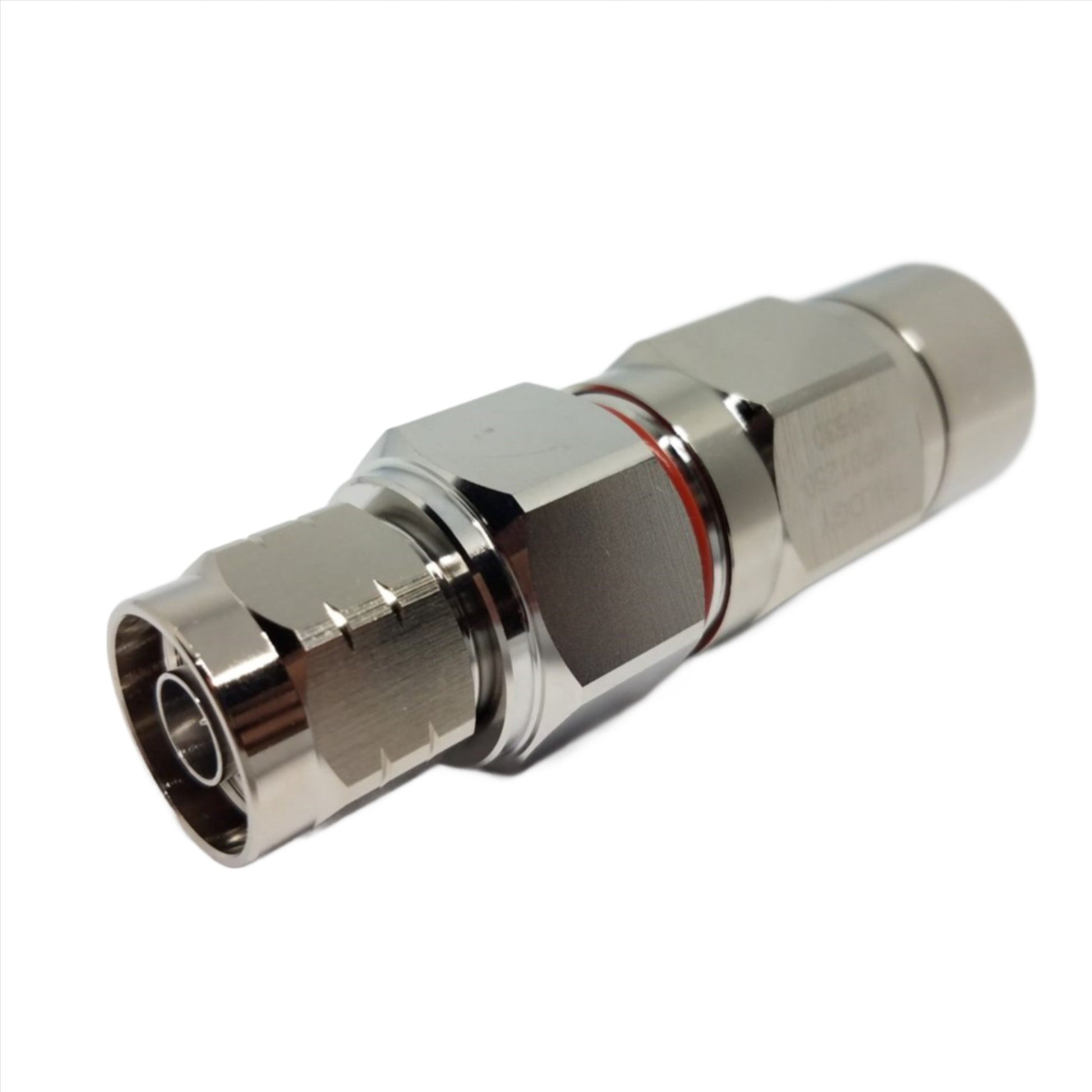

N Male Connector for 1/2" AirCell Plenum & In-Conduit Cable, 50 Ohm
For use with AirCell® 1/2" 50 Ohm Plenum, Conduit and In-Conduit Cables
Regular price
$22.69 USD
Regular price
Sale price
$22.69 USD
Unit price
/
per
Couldn't load pickup availability
Product Details
Product Details
General Specifications
- Interface: N Male
- Body Style: Straight
Electrical Specifications
- Impedance, Ohms: 50
- Operating Frequency Band: 0.3 MHz to 6 GHz
- Dielectric Withstand Voltage: 2 kV DC
- 3rd Order IMD: -140 dBc minimum, -150 typical
- 3rd Order IMD, Test Method: 2 x 20 Watt carriers
- Average Power: 0.6 kW
- Peak Power, maximum: 10 kW
- Insertion Loss, typical: 0.05
- Shielding Effectiveness: -130 dB
- Return Loss (VSWR): DC to 1 GHz 30 dB (1.06), 1 GHz to 2 GHz 31 dB (1.06), 2 GHz to 3 GHz 32 dB (1.06), 3 GHz to 4 GHz 25 dB (1.12), 4 GHz to 5 GHz 20 dB (1.22), 5 GHz to 6 GHz 15 dB (1.43)
Mechanical Specifications
- Outer Contact Plating: Silver
- Inner Contact Plating: Silver
- Interface Durability: 500 cycles
- Interface Durability Test Method: IEC 16916
- Minimum Connector Pull-off Force: 200 lbs.
Environmental Specifications
- Operating Temperature, °F (°C):
-40° to 158° (-40° to 70°)
- Storage Temperature, °F (°C):
-40° to 158° (-40° to 70°)
- Installation Temperature, °F (°C):
23° to 122° (-5° to 50°)
- Immersion Test Method: IEC60529:2001 IP68
- Corrosion Test Method: MIL-STD-1344A
- Thermal Shock Test Method: MIL-STD-202F
- Vibration Test Method: MIL-STD-202F
Additional Information
Additional Information
Regulatory Compliance/Certifications
- RoHS 2011/65/EU Compliant
- TL 9000 H-V - All Cables designed and manufactured under this quality management system.
