MR-AP6012J50-RD

MR-AP6012J50-RD

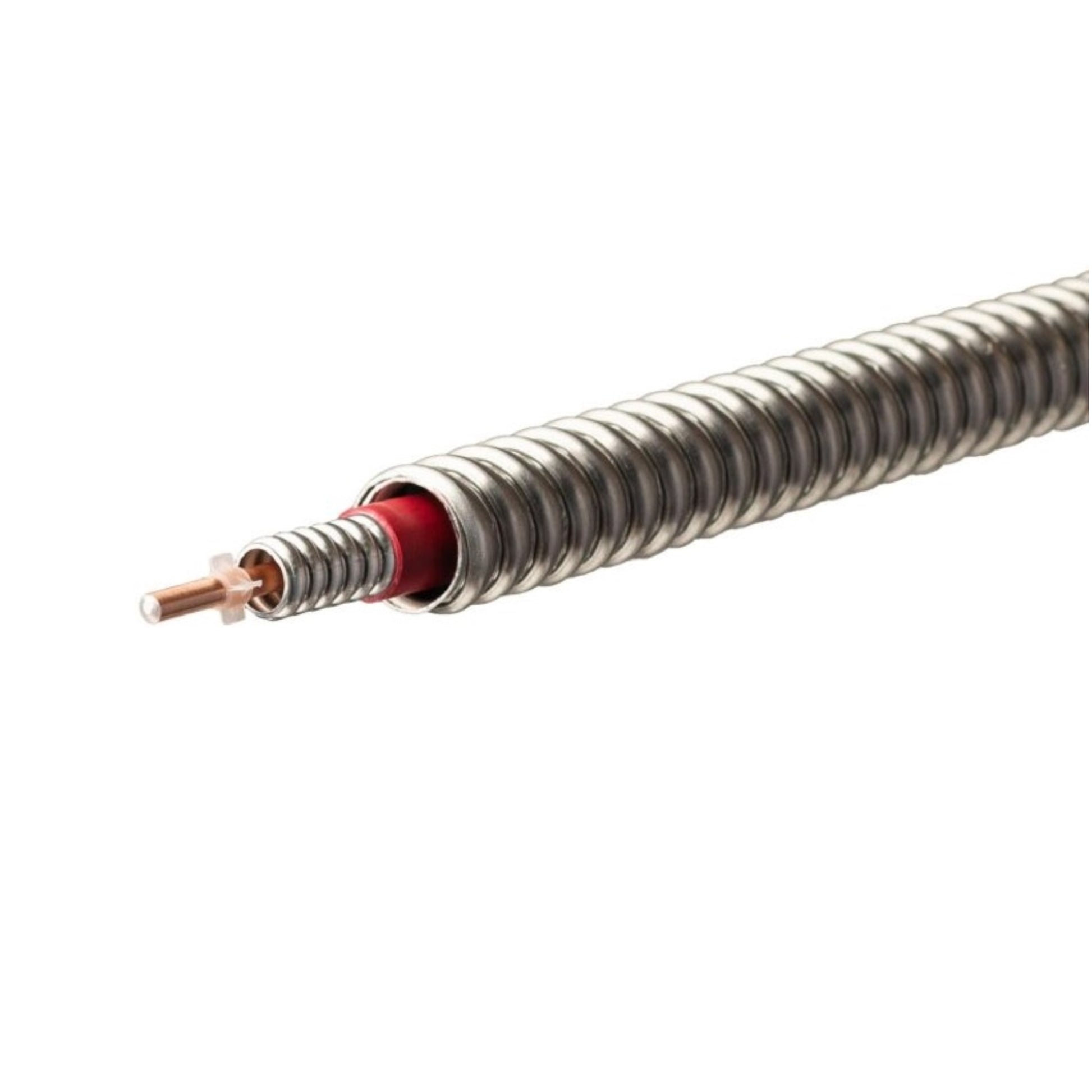

Aircell 50 Ohm Plenum Cable inside Metal Raceway
Regular price $2,000.00 USD
Regular price Sale price $2,000.00 USD
Sale Sold out
Size

Product Details

Physical Dimensions

  • Center Diameter, in (mm):

0.188 (4.78)

  • Diameter Over Outer Conductor, in (mm):

0.550 (13.97)

  • Maximum Diameter Over Jacket, in

(Area (in. sq.)): 0.62 (0.3019)

  • Inside Diameter of Metal Raceway, in

(Area (in. sq.)): 0.852 (0.5701)

  • Maximum Diameter Over Metal Raceway, in (mm): 1.08 (27.43)
  • Fill Rate of Metal Raceway: 52.95%
  • Center Conductor: Copper-Clad Aluminum
  • Outer Conductor: Corrugated Aluminum
  • Jacket Color: Red
  • Metal Raceway: Interlocked Aluminum

Electrical Characteristics

  • Maximum Frequency, GHz: 10
  • Peak Power Rating, KW: 35
  • DC Resistance, Ohms/1,000 ft (1,000 m):

Center: 0.46 (1.51), Outer: 0.51 (1.67)

  • DC Breakdown, kV: 2
  • Capacitance, pF/ft (m): 22 (72.12)
  • Inductance, µH/ft (m): 0.057 (0.187)
  • Jacket Spark, kV RMS: 8
  • VSWR min, (dB): 1.25 (19.0)
  • VSWR typical, 150 / 450 / 698-960 / 1700-2200 MHz (dB): 1.13 (24.3)
  • Impedance, Ohms: 50 ± 2
  • Velocity of Propagation: 94%

Mechanical Characteristics

  • Minimum Bend Radius, in (mm): 7 (178)
  • Cable Weight, lb/ft (kg/m): 0.26 (0.39)
  • Bending Moment, ft lb (N m): 15 (20.3)
  • Tensile Strength of Metal Raceway, lb (kg):

150 (68)

  • Crush Strength, lbf: 1900
  • Clamp Spacing, ft (m): 5 (1.52)
  • Metal Raceway utilizes standard MC/AC ¾” connectors and hangers
  • Recommended Install Temp., °F (°C):

+5° to 194° (-15° to 90°)

  • Recommended Storage Temp., °F (°C):

+5° to 194° (-15° to 90°)

  • Recommended Operating Temp., °F (°C):

+5° to 194° (-15° to 90°)

Additional Information

Standard Conditions

  • For Attenuation: VSWR 1.0, Ambient Temperature 20°C (68°F)
  • For Average Power: VSWR 1.0, Ambient Temperature 40°C (104°F), Inner
    Conductor Temperature 100°C (212°F), No Solar Loading

Regulatory Compliance/Certifications

  • RoHS 2011/65/EU Compliant
  • TL 9000 H-V - All Cables designed and manufactured under this quality management system
  • NFPA 72 (2019), Section 12.4.2 - Pathway Survivability Level 1 shall consist of pathways in
    buildings that are fully protected by an automatic sprinkler system in accordance with NFPA 13 with any interconnecting conductors, cables, or other physical pathways installed in metal raceways.
