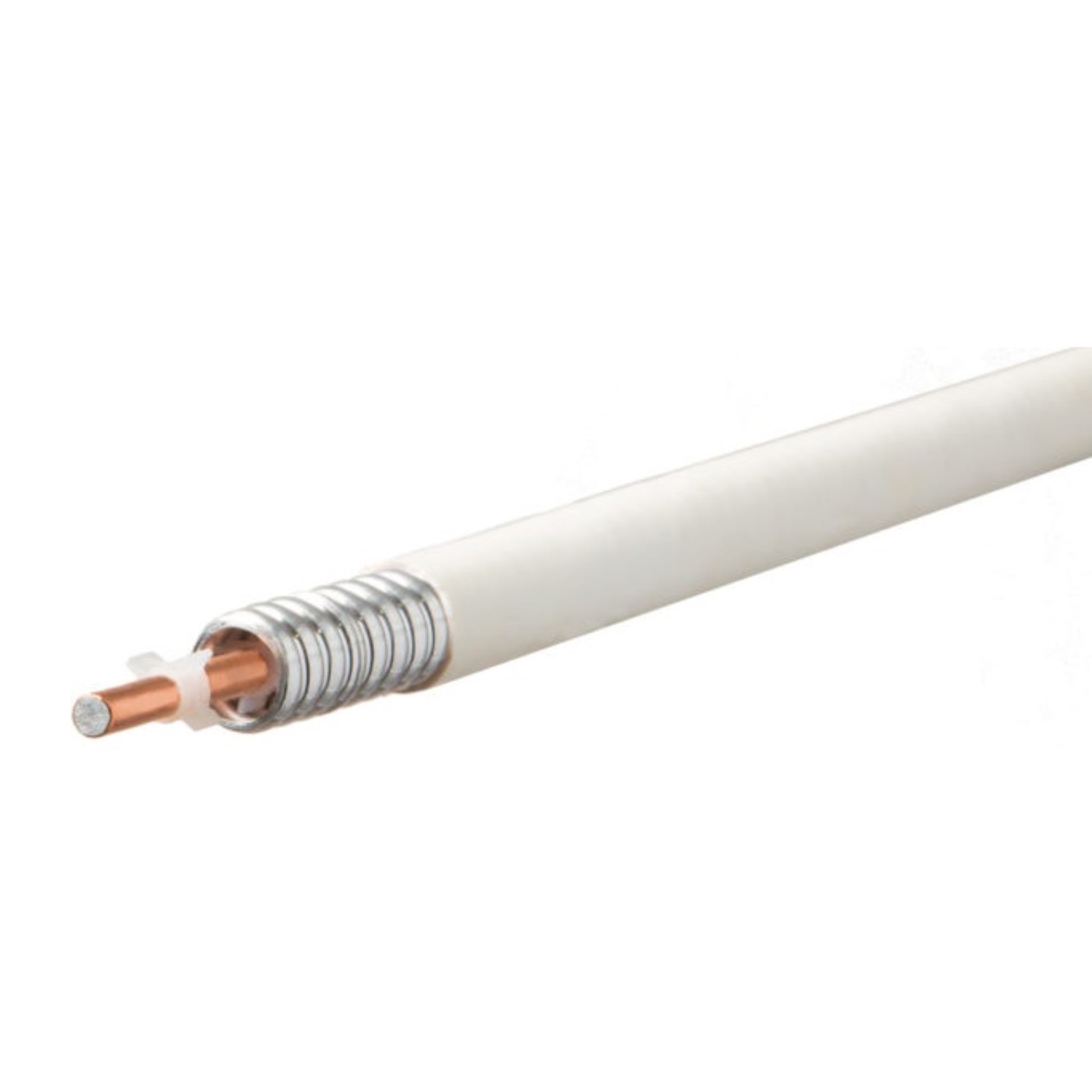

AP6012J50

Cable Weight, lb/ft (kg/m)Physical Dimensions

• Center Diameter, in (mm):

0.188 (4.78)

• Diameter Over Outer Conductor, in (mm):

0.550 (13.97)

• Maximum Diameter Over Jacket, in (mm):

0.63 (16.00)

• Center Conductor: Copper-Clad Aluminum
• Outer Conductor: Corrugated Aluminum
• Jacket Color: Off White

Electrical Characteristics

• Maximum Frequency, GHz: 10
• Peak Power Rating, KW: 35
• DC Resistance, Ohms/1,000 ft (1,000 m):

Center: 0.46 (1.51), Outer: 0.51 (1.67)

• DC Breakdown, kV: 2
• Capacitance, pF/ft (m): 22 (72.12)
• Inductance, mH/ft (m): 0.057 (0.187)
• Jacket Spark, kV RMS: 8
• VSWR min, (dB): 1.25 (19.0)
• VSWR typical, 700-960 / 1700-2200 MHz (dB):

1.13 (24.3)

• Impedance, Ohms: 50 ± 2
• Velocity of Propagation: 94%

Mechanical Characteristics

• Minimum Bend Radius, in (mm) - Single: 2 (50.8)
• Minimum Bend Radius, in (mm) - Multiple: 5 (127)
• Cable Weight, lb/ft (kg/m): 0.13 (0.20)
• Bending Moment, ft lb (N m): 1 (1.4)
• Tensile Strength, lb (kg): 250 (114)
• Flat Plate Crush, lb/in (kg/mm): 78 (1.39)
• Number of Bends, minimum: 15
• Recommended Install Temp., °F (°C):

(+5° to 194° (-15° to 90°)

• Recommended Storage Temp., °F (°C):

+5° to 194° (-15° to 90°)

• Recommended Operating Temp., °F (°C):

+5° to 194° (-15° to 90°)

Standard Conditions

• For Attenuation: VSWR 1.0, Ambient Temperature 20°C (68°F)
• For Average Power: VSWR 1.0, Ambient Temperature 40°C (104°F), Inner Conductor Temperature 100°C (212°F), No Solar Loading

Regulatory Compliance/Certifications

• RoHS 2011/65/EU Compliant
• TL 9000 H-V - All Cables designed and manufactured under this quality management system
