Clearline Engineering

AC012J50

AC012J50

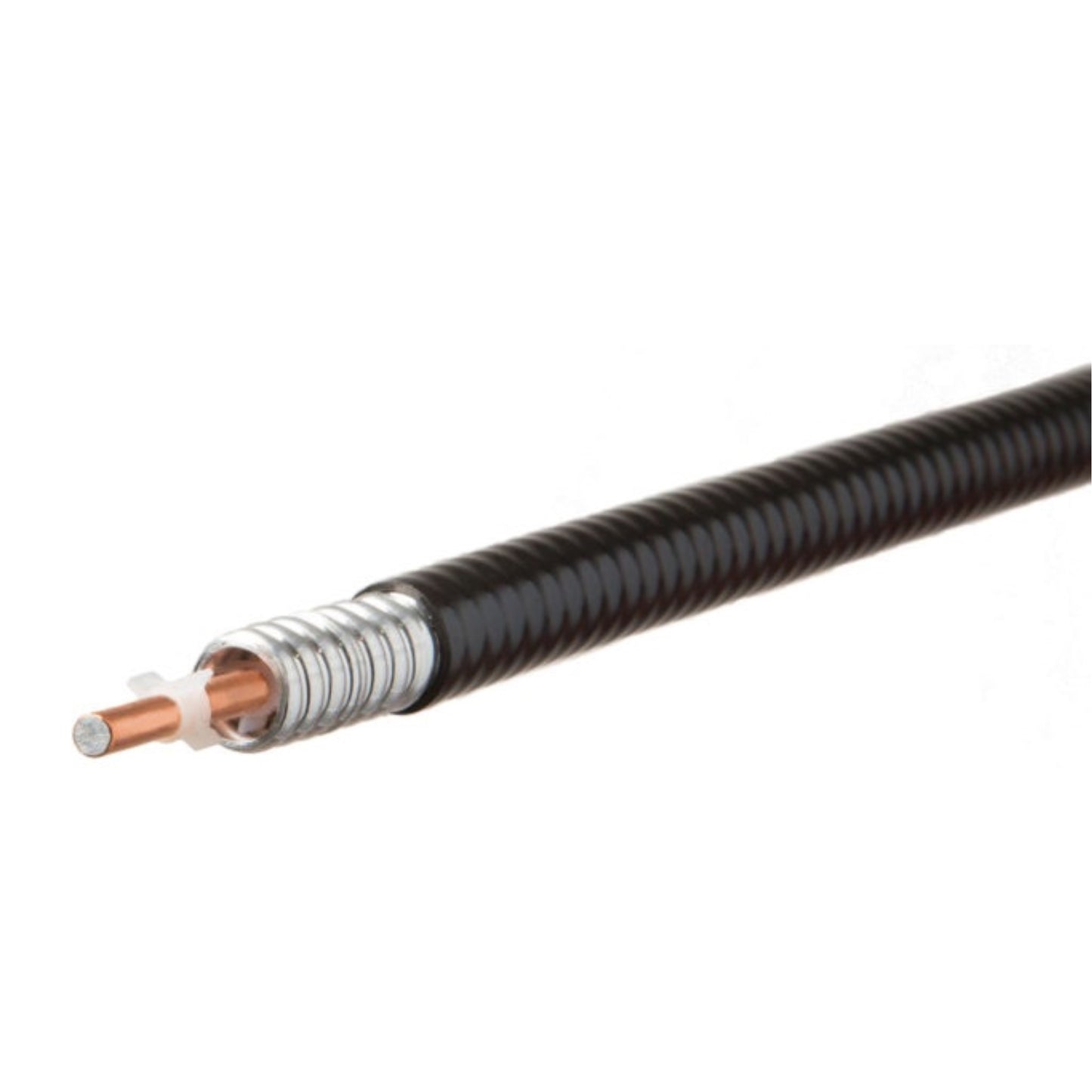

Aircell 50 Ohm In-Conduit, 1/2”, Corrugated, Black Polyethylene Jacket
Regular price $931.25 USD
Regular price Sale price $931.25 USD
Sale Sold out
Size

Product Details

Physical Dimensions

  • Center Diameter, in (mm): 0.188 (4.78)
  • Diameter Over Outer Conductor, in (mm): 0.550 (13.97)
  • Maximum Diameter Over Jacket, in (mm): 0.63 (16.00)
  • Center Conductor: Copper-Clad Aluminum
    Outer Conductor: Corrugated Aluminum
  • Jacket Color: Black

Electrical Characteristics

  • Maximum Frequency, GHz: 10
  • Peak Power Rating, KW: 35
  • DC Resistance, Ohms/1,000 ft (1,000 m): Center 0.46 (1.51), Outer 0.51 (1.67)
  • DC Breakdown, kV: 2
  • Capacitance, pF/ft (m): 22 (72.12)
  • Inductance, mH/ft (m): 0.057 (0.187)
  • Jacket Spark, kV RMS: 8
  • VSWR min, (dB): 1.25 (19.0)
  • VSWR typical, 700-960 / 1700-2200 MHz (dB): 1.13 (24.3)
  • Impedance, Ohms: 50 ± 2
  • Velocity of Propagation: 94%

Mechanical Characteristics

  • Minimum Bend Radius, in (mm) - Single: 2 (50.8)
  • Minimum Bend Radius, in (mm) - Multiple: 5 (127)
  • Cable Weight, lb/ft (kg/m): 0.11 (0.16)
  • Bending Moment, ft lb (N m): 1 (1.4)
  • Tensile Strength, lb (kg): 250 (114)
  • Flat Plate Crush, lb/in (kg/mm): 78 (1.39)
  • Number of Bends, minimum: 15
  • Recommended Install Temp., °F (°C): (-10° to 170° (-23° to 77°)
  • Recommended Storage Temp., °F (°C): (-40° to 170° (-40° to 77°)
  • Recommended Operating Temp., °F (°C): -40° to 170° (-40° to 77°)

Additional Information

Standard Conditions

  • For Attenuation: VSWR 1.0, Ambient Temperature 20°C (68°F)
  • For Average Power: VSWR 1.0, Ambient Temperature 40°C (104°F), Inner
    Conductor Temperature 100°C (212°F), No Solar Loading

Regulatory Compliance/Certifications

  • RoHS 2011/65/EU Compliant
  • TL 9000 H-V - All Cables designed and manufactured under this quality management system
